The following example configurations of the LIBS-6 / LIBS-8 modules help to illustrate the versatility of our modular design. Example configuration 1 is of a relatively simple LIBS instrument whereas example configurations 2 and 3 show more complicated LIBS instruments for more specialised applications. Many other configurations are possible so please contact us if you have a specific requirement.

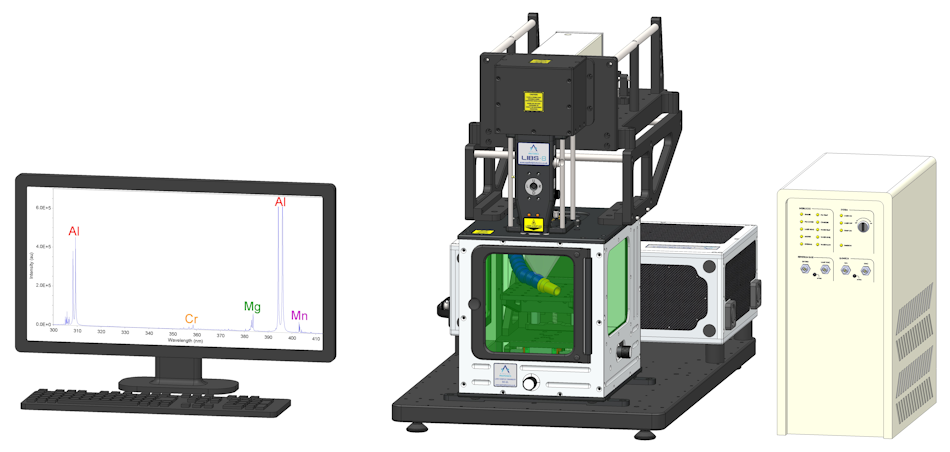

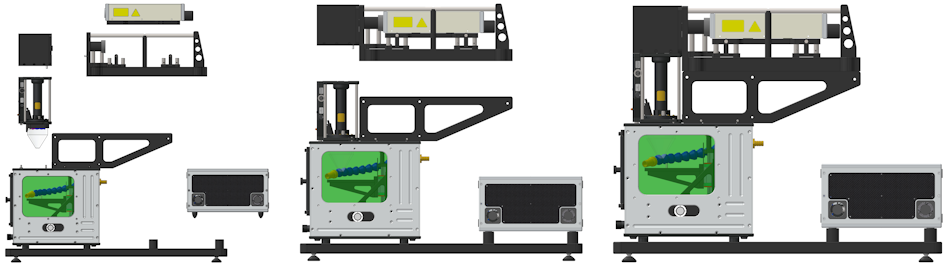

Example configuration 1
LIBS-6 Integrated LIBS Module
Litron Nano SG 150-10 laser (150 mJ, 10 Hz, 1064 nm)
AP-Nano Adaptor Platform
SpectroModule-6 multi-channel spectrometer
SC-2L manually-controlled sample chamber
User's Manual for Configuration 1

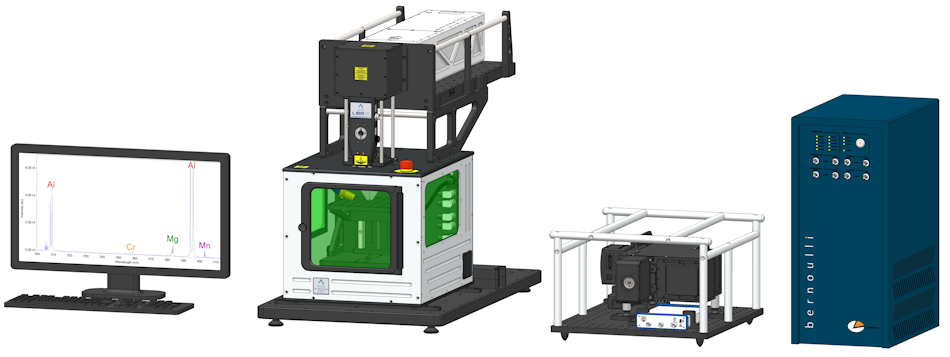

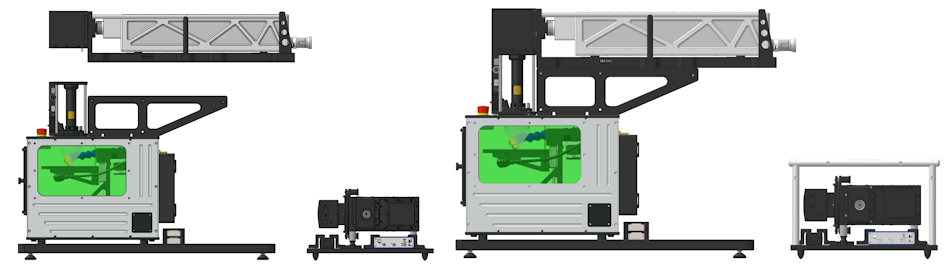

Example configuration 2
LIBS-6 Integrated LIBS Module
Litron Bernoulli dual-wavelength, double-pulse laser (2 x 150 mJ @ 1064 nm, 2 x 25 mJ @ 266 nm, 20 Hz)
AP-Bernoulli Adaptor Platform
EMU 120/65 echelle spectrometer with EMCCD camera
XYZ-750 computer-controlled sample chamber

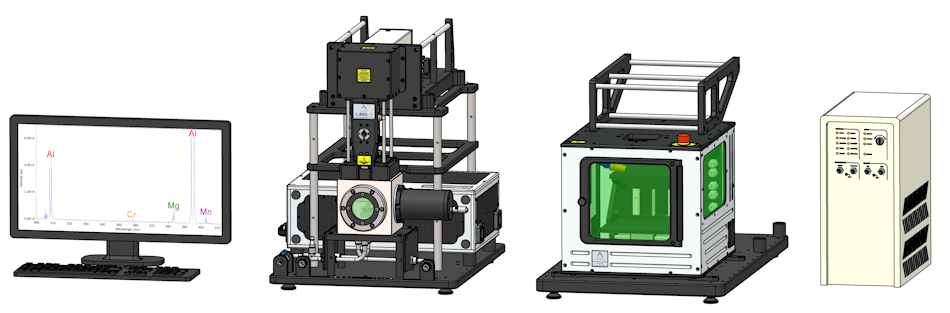

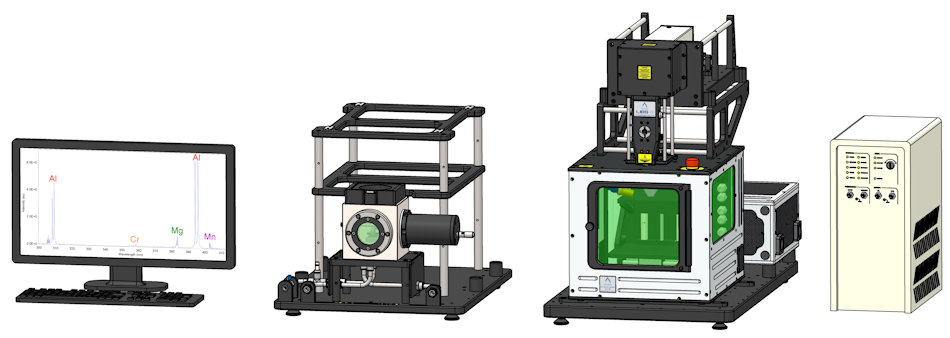

Example configuration 3
LIBS-8 Integrated LIBS Module
Litron Nano SG 150-10 laser (150 mJ, 10 Hz, 1064 nm)
AP-Nano Adaptor Platform
SpectroModule-8 multi-channel spectrometer
XYZ-750 computer-controlled sample chamber
SC-LQ2 liquids sample chamber
